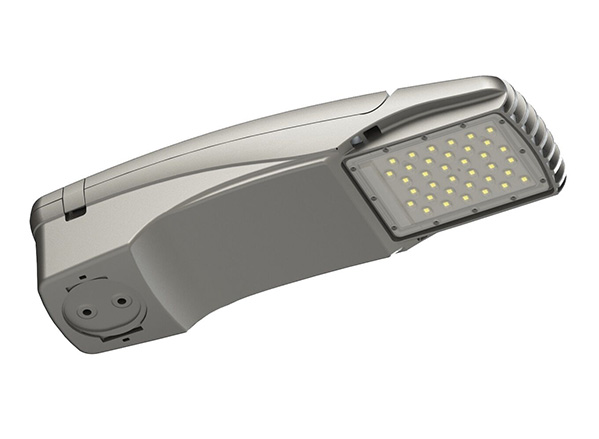

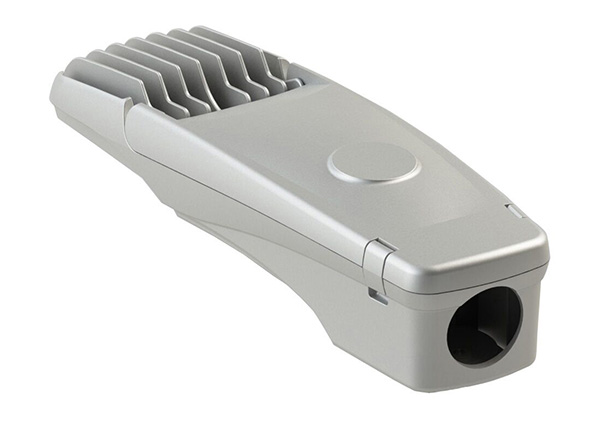

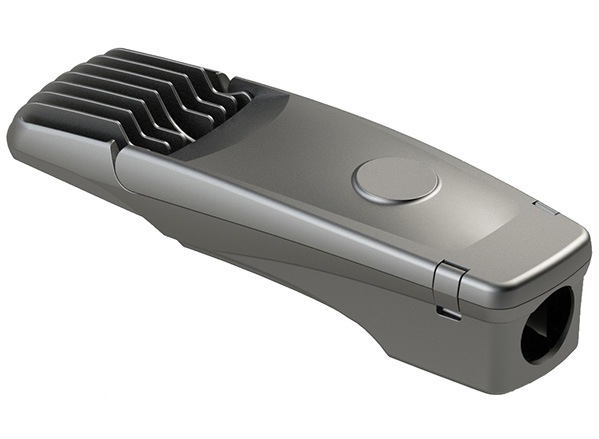

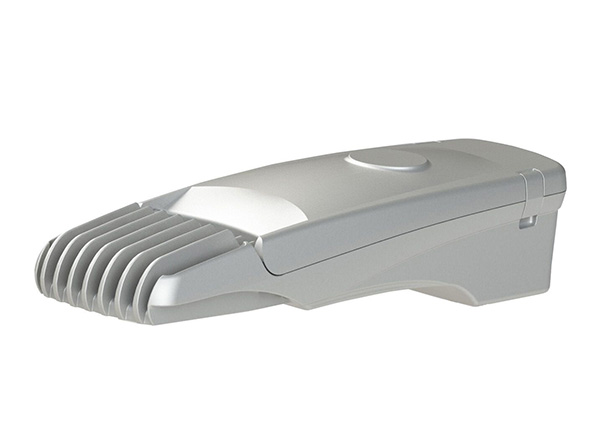

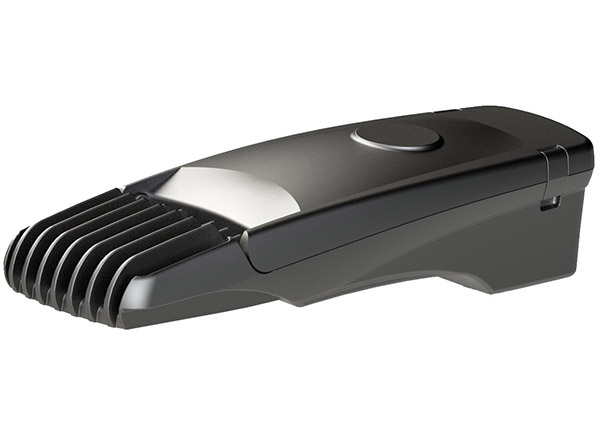

Mini Plus LED Street light series is a flexible, easy to maintain LED street light. It is the simplest platform to achieve optimal balance between performance and cost. The specially designed optical lens suits for various road conditions and achieves a good uniformity.
Full Wattage range: 60W/70W/80W/90W/100W/110W/120W roadway and street lights.
High brightness LED street light :140-145lm/w.
Withstand wind speeds of up to 150km/hour LED highway lights.
Degree of protection : IK10, IP66
Low cooper die-cast aluminum alloy housing.
High corrosion resistance powder coating, suitable to install in seaside countries outdoor LED street light.
Tool less opening LED street light, easy for installation and maintenance.
Using top class original LEDs and driver.

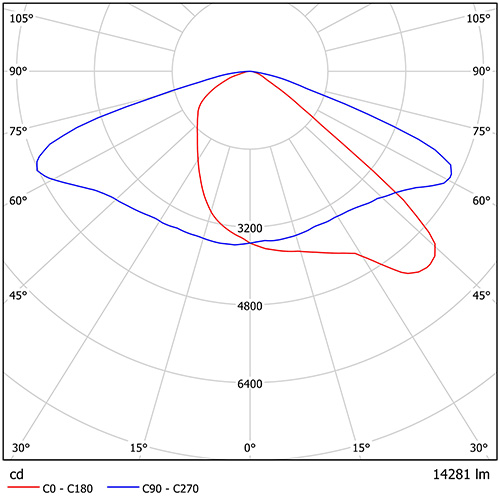

Professional optical design, lens up to 93% high light transmittance.
Photocell, 3/5/7 pins NEMA Socket and LoRa/Zhaga socket optional for smart LED street light.
10kV, 40kV Surge protection device optional.
100,000 hours long life high quality LED street light.
Suitable for side entry and post top installation LED road light.
Compact and small size led street light, saving logistic costs.
| Input Voltage Range | 100-305 VAC |
| Input Frequency | 50/60Hz |
| Power Factor | ≥ 0.95@230VAC |
| Total Harmonic Distortion | <10% |
| Surge Protection | 10KV (40KV for optional) |
| Color Temperature | 4000K (Other color temperatures are optional) |
| Ingress Protection Rating | IP66 |
| Lifespan | L80>50,000hours |
| Operating Temperature Range | -40℃ to 50℃ |
| Color rendering index | >70 |
| Model NO. | Power consumption (W) | Luminous Flux (lm) | Color Temperature |
| TSL-1006-07 | 60 | 8,400 | 4000K |
| TSL-1507-07 | 70 | 9,800 | 4000K |
| TSL-1508-07 | 80 | 11,200 | 4000K |
| TSL-1509-07 | 90 | 12,600 | 4000K |
| TSL-2510-07 | 100 | 14,000 | 4000K |
| TSL-2512-07 | 120 | 16,800 | 4000K |
*Above data is typical data.
Edge X manages street lights as an asset. Lighting can be tuned based on the traffic and pedestrian flow to maximize energy saving without compromising safety.
Edge X has an intuitive user interface. It allows the user to view their asset on the map, manage and perform tasks remotely.
Edge X can manage Digital Signage which can provide information for pedestrian and provide targeted marketing based on pedestrian focused contextual analytics.
Edge X allow public to report failure of devices and enables authorities to record, track and analyze events to improve the quality of service.
Edge X can monitor energy consumption of devices. This information can help user to manage and achieve targeted energy saving.
Edge X can manage a portfolio of devices in an increasingly complex city setting. It is an easy to use single entry portal to manage all devices like poles, sensors, cameras and so on.
