manages street lights as an asset. Lighting can be tuned based on the traffic and pedestrian flow to maximize energy saving without compromising safety.
has an intuitive user interface. It allows the user to view their asset on the map, manage and perform tasks remotely.
can manage Digital Signage which can provide information for pedestrian and provide targeted marketing based on pedestrian focused contextual analytics.
allow public to report failure of devices and enables authorities to record, track and analyze events to improve the quality of service.
can monitor energy consumption of devices. This information can help user to manage and achieve targeted energy saving.
can manage a portfolio of devices in an increasingly complex city setting. It is an easy to use single entry portal to manage all devices like poles, sensors, cameras and so on.

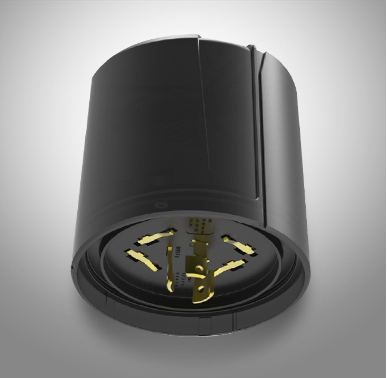

TWIST & TURN Easy Installation
| Communication | SUB-1G,NB-loT,LoRa,Cat M1 |
| Monitoring | V,A,W,F,PF,WH,VAR&VARH |
| Frequency Operation |
SUB-1G & LoRa:868MHz/315MHz/433MHz/902MHz/915MHz NB-loT:B1,B3,B5,B8,B20,B28 Cat M1:B1,B2,B3,B4,B5,B8,B12,B13,B18,B19,B20,B26,B28,B39 |
| GPS | GPS RADIONOVA RF Antenna Module(optional) |
| Standby | < 1W |
| NEMA | 5/7Pin |
| Dimming | 1-10V,DALI |
| Security | AES-128,AES-256(optional) |
| Functionality | Feature |
|---|---|
| Data Dashboard | • User-friendly interface to efficiently track, analyze and display key data in the form of charts and tables |
| Map View | • Streetlight location and status display • Monitoring management with map view |
| Real-Time Monitoring | • Streetlight location and status display• Live data of streetlight status, energy usage, energy cost and CO2 emissions • Real-time system warning |
| Remote Control | • Activation, deactivation and dimming • Single control / group control / circuit control |
| Schedule Manager | • One-time, daily, weekly and monthly schedule management |
| System Health | • Abnormal power consumption, activation and deactivation diagnosis and repair suggestion • Warnings of power theft, lamp malfunctions • Customization of warning awareness to users and maintenance service providers |
| Asset Manager | • Controllers, circuits, gateways, meters and lamps management • Status and information report |
| Event View | • Operation occurrences records for future tracking and monitoring • CSV export |
| Repair Manager | • Repair procedure with status report • Tracking records of repair and maintenance |
| Energy Saving Report | • Analysis of historical power consumption and energy-saving comparisons (daily/weekly/monthly/annually) • Analysis of repairs, availability and life span |
| User Access Manager | • System access control by administrators • Grouping function for managing user authorization |
| Browser | • Web-based |
| Customized Options | • Integrating with existing pipeline information, citizens fault reporting service •Existing luminaries from other manufacturer are also included in the system |
