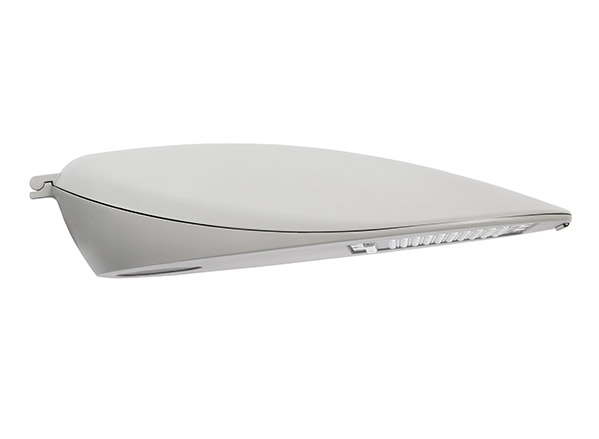

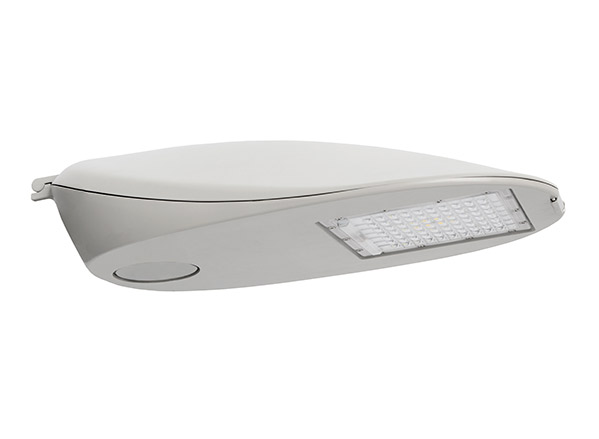

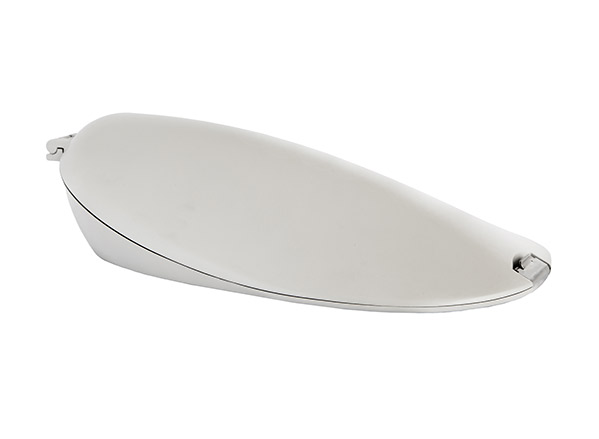

Mini II

The MINI II series is an evolved version of G5 MINI. The evolved version is not only to keep original advantages, but to provides more competitiveness in both performance and cost. In addition, MINI II platform can be easily converted to be customized as always.

  • Street Light - Mini II
  • Street Light - Mini II
  • Street Light - Mini II

Certifications

Features

Low copper Al alloy with high corrosion resistance powder coating.

Tool-less operating latch, easy for power compartment opening and closing

Suitable for side entry and post top without additional parts.

Hidden heat sink avoids contaminants accumulated.

Compact and light weight, saving logistic cost

Excellent efficacy enables significant energy cost saving


General specification

Operation Voltage Range 85 – 305Vac
Input Frequency 50/60 Hz
Power Factor (note 1) ≧0.95 @230Vac
Total Harmonic Distortion (note 2) ≦10 @230Vac
Surge Protection 10KV
Typical Color Temperature (note 3) 4000K
Net Weight 4.5 kg
Ingress Protection Rating IP66
Operating Temperature -40℃ – 50℃

Note:

1.For those models that power consumption is below 50W, the power factor is higher than 0.9

2.For those models that power consumption is below 50W, the THD is less than 15%

3.Other color temperatures are available upon request

Specification

Model Number Power Consumption(Watt) Luminous Flux(lm)
TSL-1507-09 70 9,400
TSL-1006-09 55 7,750
TSL-1005-09 45 6,700
TSL-0704-09 35 4,400
TSL-0703-09 28 3,700
TSL-0502-09 23 3,100

Dimensions (Unit: mm)

MINI II LED STREET LIGHT

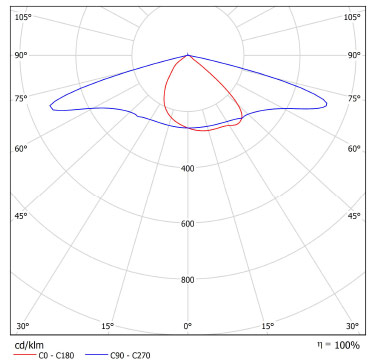

Light Distribution

MINI II LED STREET LIGHT

Smart Street Lighting Ready

Smart Street Lighting
  • Smart Street Light System

    Smart Street Light System

    Edge X manages street lights as an asset. Lighting can be tuned based on the traffic and pedestrian flow to maximize energy saving without compromising safety.

  • Visualization Interface

    Visualization Interface

    Edge X has an intuitive user interface. It allows the user to view their asset on the map, manage and perform tasks remotely.

  • Intelligent Signage

    Intelligent Signage

    Edge X can manage Digital Signage which can provide information for pedestrian and provide targeted marketing based on pedestrian focused contextual analytics.

  • Failure Report System

    Failure Report System

    Edge X allow public to report failure of devices and enables authorities to record, track and analyze events to improve the quality of service.

  • Consumption Monitoring

    Consumption Monitoring

    Edge X can monitor energy consumption of devices. This information can help user to manage and achieve targeted energy saving.

  • Asset Management System

    Asset Management System

    Edge X can manage a portfolio of devices in an increasingly complex city setting. It is an easy to use single entry portal to manage all devices like poles, sensors, cameras and so on.
