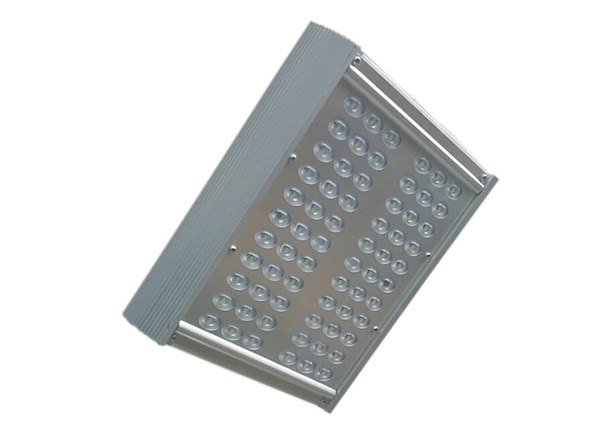

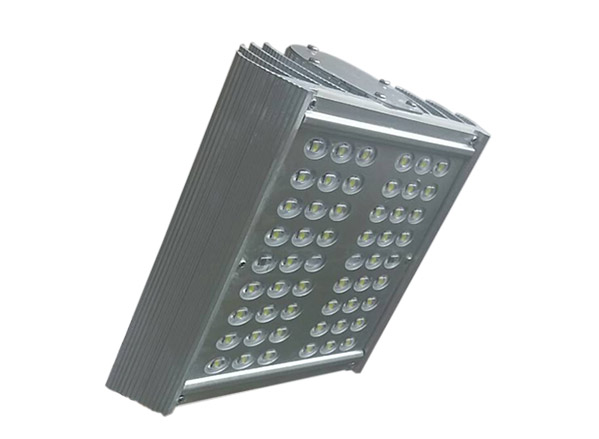

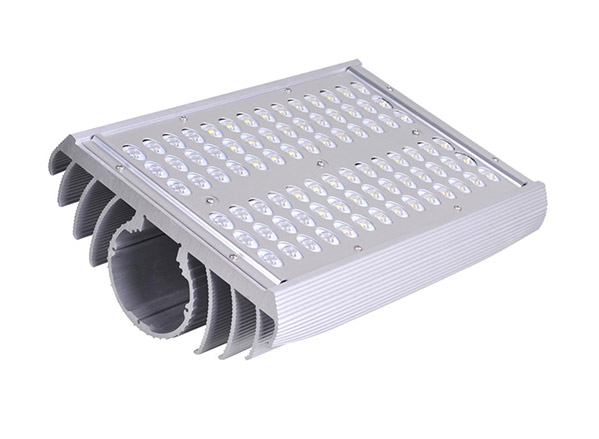

Caesar Series LED street light with integrally formed housing and external driver design, which reduces the electric compartment makes the whole structure more light and easy to assemble & maintenance. The distinctive outward appearance creates not only the good heat dissipation, but provides the high luminous efficiency.
Using the latest high efficiency high power LED
External driver , easy for maintenance
Professional optical lens reaches 93% light transmittance
Efficient thermal management
Very flexible for customization
Optional photocell & SPD
RoHS and CE compliant
| Input voltage range | 100–305VAC |
| Input Frequency | 45-66Hz |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <10% |
| Surge Protection | 10KV (40KV for optional) |
| Color Temperature | 5000K (Other color temperatures are optional) |
| Ingress Protection Rating | IP66 |
| Lifespan | 100,000hours |
| Operating Temperature Range | -40℃ to 50℃ |
| Color rendering index | >70 |
| Model NO. | Power consumption (W) | Luminous Flux (lm) | Net Weight (KG) |
| TSL-1035-03N | 35 | 4,900 | 2 |
| TSL-2070-03N | 70 | 9,800 | 2 |
| TSL-3100-03N | 100 | 14,000 | 2.3 |
| TSL-4135-03N | 135 | 18,900 | 2.7 |
*Above data is typical data.

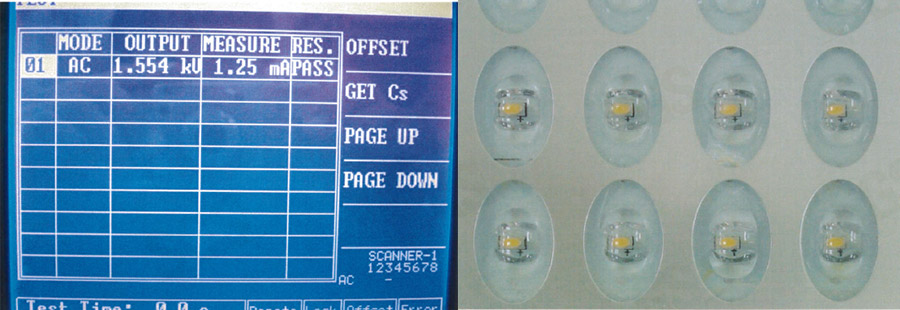

High quality optical lens give 5-7% higher efficiency than other similar type of lamps.

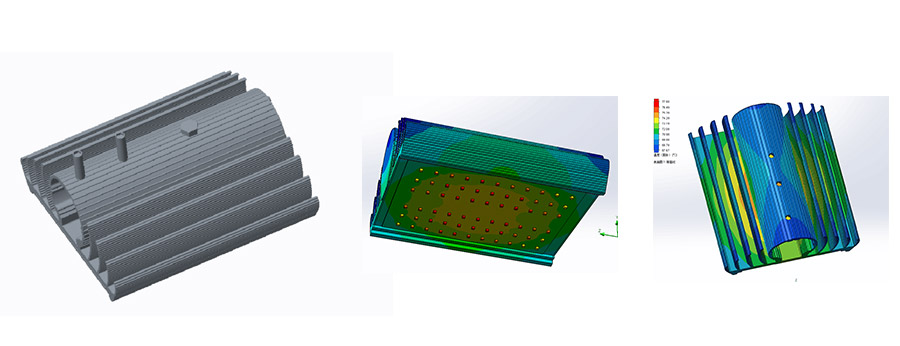

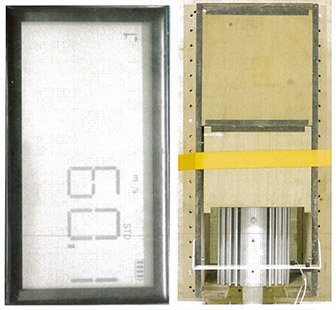

Approved a solid die-cast IK10 rated housing, ensuring high strength and safety on the pole, provides the excellent heat dissipation, extending the life of the components inside. Lamp efficiency range from 105lm/w to 125lm/w.

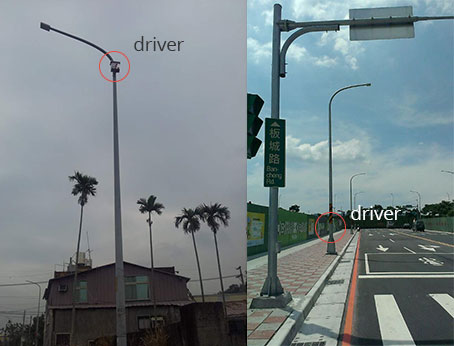

Driver can be set at the pole or at the bottom It is good for driver’s heat dissipation and driver’s maintenance.

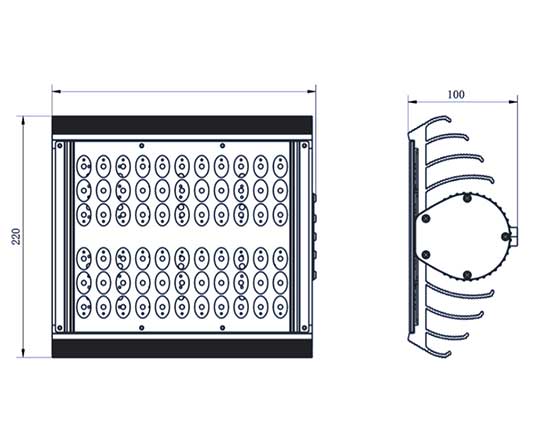

| Model No. | Dimension |
| TSL-1035-03N | 166*220*100mm |
| TSL-2070-03N | 166*220*100mm |
| TSL-3100-03N | 202*220*100mm |
| TSL-4135-03N | 238*220*100mm |

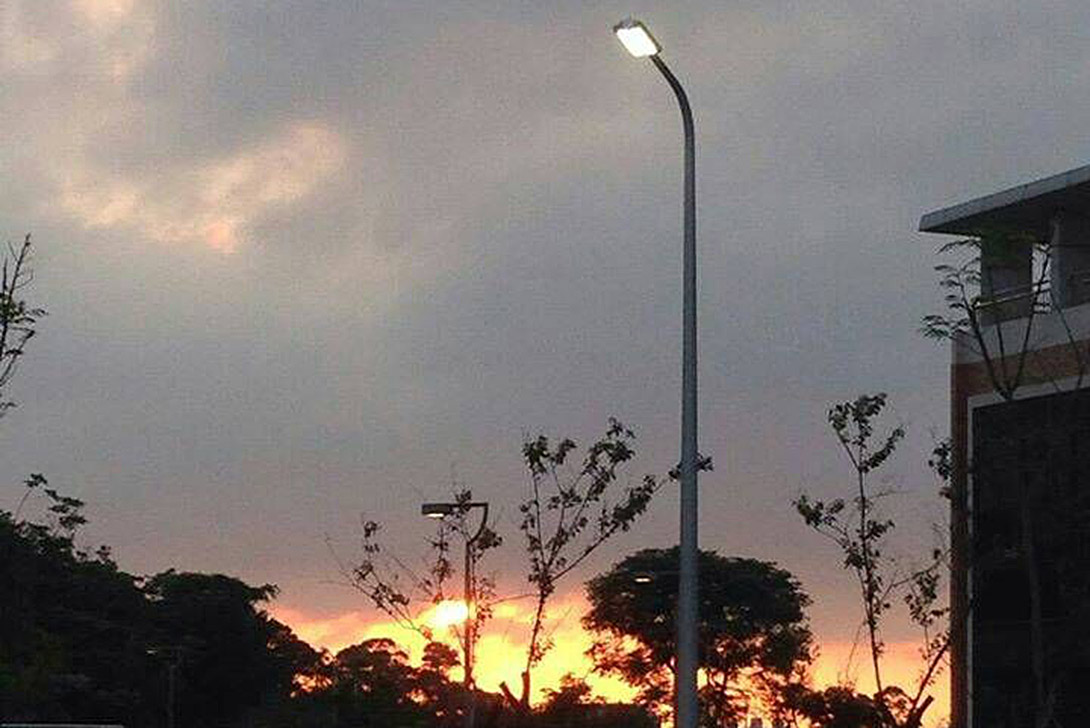

City Streets, Pavements, Roadways, Parking Lots, Squares, Schools, Parks, Yards, Commercial, Inhabited Area, Shopping Malls, and Any Places that need any security lighting level.
We provide 5 years warranty from date of original purchase from Tynrich for LED products.
