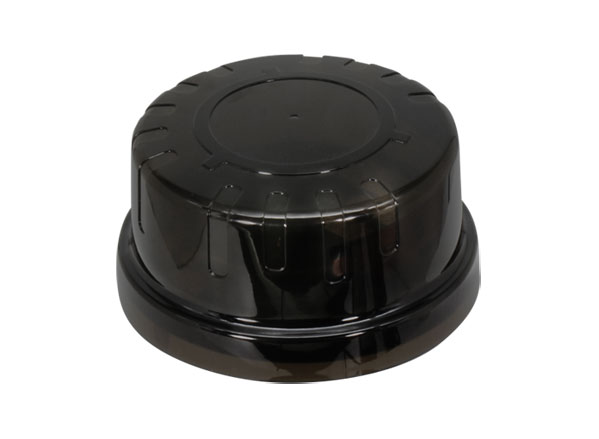

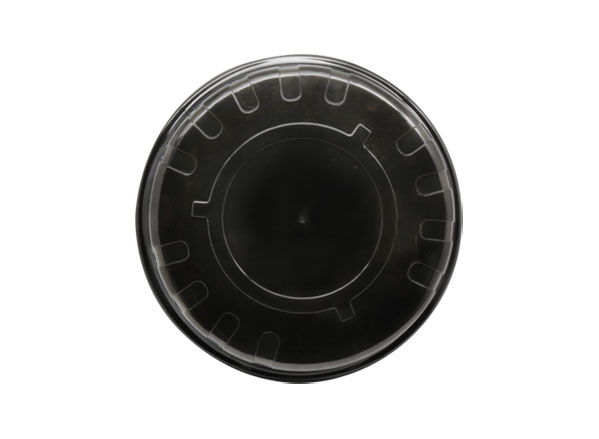

NB-IoT/LTE-M Smart Light Controller--Watt Solid-State Light Co.,Ltd

Features

Designed and optimized by Low Power Wide Area Network (LPWAN) with NB-IoT/LTE-M network technology.

Compatible with the ANSI C136-41 NEMA type LED luminaires

Smart Control function (ON/OFF/Dimming)

Electrical parameters monitoring

Fault detection

Auto schedule when communication fail.

Intelligent operation based on predestinate schedule.

Wide operating temp range -20˚C to +70˚C

Platform connection - supporting MQTT and MQTTS transfer protocol.

Supporting integrated ambient light sensor and accelerometer

Supporting Firmware-Over-the-Air (FOTA)

Specification

Model		SRC-LNP6
Connected

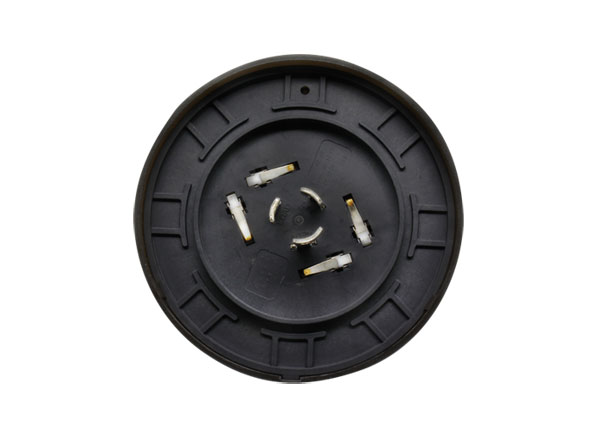

Pin Define		7pin connector, meet ANSI C136.41 Standard
Controller Feature
Dimmable Function Feature		DALI	AO (0-10Vdc)
Electrical parameters monitor		Vrms(V)、Irms(I)、Power Factor(PF)、Frequency(Hz)、Power(W)
Lighting Control	ON / OFF	Yes
Wireless
NB-IoT/LTE-M		3GPP Rel.14 Compliant Protocol Frequency Band: B1-2100Mhz, B2-1900Mhz, B3-1800Mhz, B4-1700Mhz, B5-850Mhz, B8-900Mhz, B12-700Mhz, B13-700Mhz, B14-700Mhz, B20-800Mhz, B28-700Mhz Data rate: Cat.NB1 DL: max. 27 kbps, UL: max. 63 kbps Cat.NB2 DL: max.124 kbps, UL: max. 158 kbps LTE -M DL: max. 300 kbps, UL: max. 1.1 Mbps
Protocols		MQTT, MQTTS
Encryption		TLS v1.0, TLS v1.1, TLS v1.2
SIM Card Type		Nano SIM Card slot and Chip SIM
Electrical Specification
AC Input Voltage		90-277 VAC 50/60Hz
Rating		Max. 277VAC@2A
Power Consumption		Max. 1.35W (TBD)
Supply Current	DALI	10mA
	AO(0-10Vdc)	1mA
Protection
Inrush Current Protection		5A@10ms pulse
ESD (Electro Static Discharge)		IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
Surge		IEC 61000-4-5 Surge Power: 4 kV;
Certification
ESD (Electro Static Discharge)		IEC 61000-4-2
EMC (Electromagnetic Compatibility)		EN 55032/55024
EMI (Electromagnetic Interference)		CISPR 32, FCC Part 15B Class B CNS 13438 (NCC: TBD)
RS (Radiated Susceptibility)		IEC 61000-4-3
EFT (Electrical fast transient)		IEC 61000-4-4
Surge		IEC 61000-4-5
CS (Conducted Susceptibility)		IEC 61000-4-6
RF (radio frequency)		PLMN11 (LET-NB / LET-M1) (NCC: CCAO21NB0010T5)
Safety		IEC 60950-22 CNS 14336-1 (NCC: CCAO21NB0010T5)
Firmware
Firmware update		OTA (Over the air)
Physical Characteristic
Enclosure		IP66

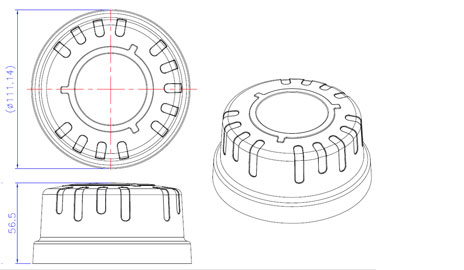

Dimensions		Ф111 x 56.5mm
Weight(g)		190g
Environmental
Storage Temperature		-40˚C to +80˚C
Operating Temperature		-20˚C to +70˚C
Operating Humidity		0 to 95%
Additional Sensor Support Feature
Ambient light sensor		16-bit effective linear output (0~65535)
Accelerometer		Measurement Range(g): ±2, ±4, ±8, ±16
GNSS / GPS (optional)		GNSS Frequency band: GPS / GLONASS/BeiDou/Galileo
