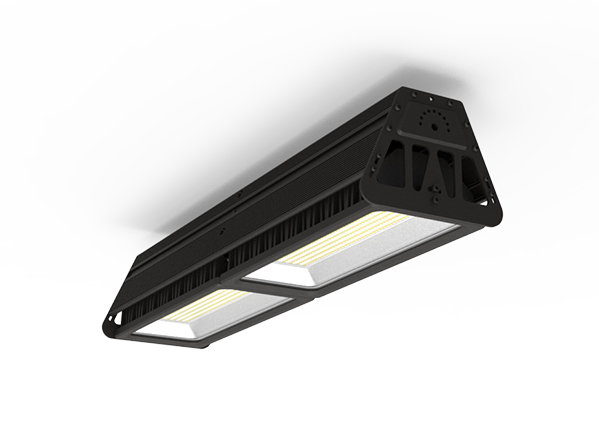

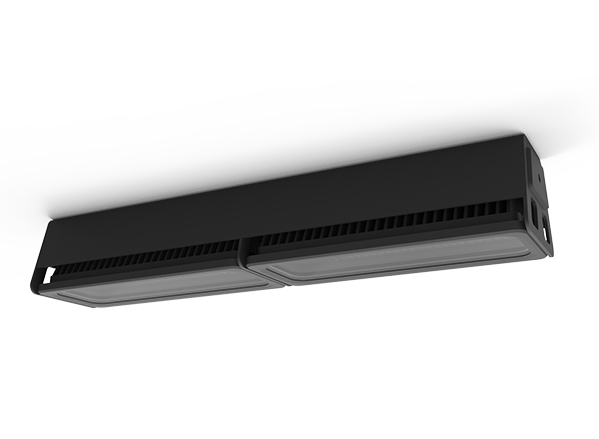

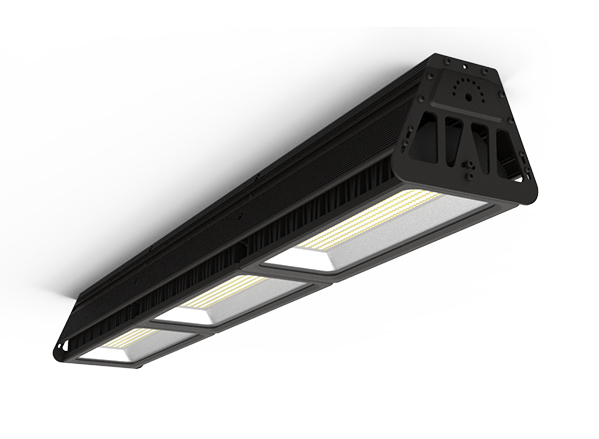

LED Linear Bay Light

Features

Multiple optical lenses

±30° rotatable module angle

Customized laser and label branding

IP65, IK08

CE, RoHS

Excellent patented design

Meamwell driver, 7 years warranty

Good extensibility, compatible with microwave sensor and SPD

SKD/CKD solution available

Reliable heat dissipation

General specification

Input Voltage Range	90-305Vac
Input Frequency	45-66 Hz
Power Factor	>0.95
CRI	>70
Beam Angle	NICHIA/LUMILEDS: 110°
	CREE: 20°/35°/40°/50°/60°90°/65°135°/85°*135°
Color Temperature	4000K/5000K/6500K
Ingress Protection Rating	IP65/IK08
Operating Temperature Range	-40℃ to 50℃

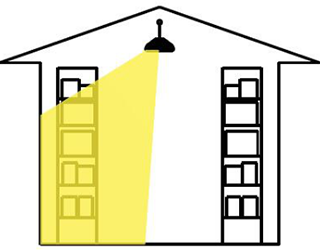

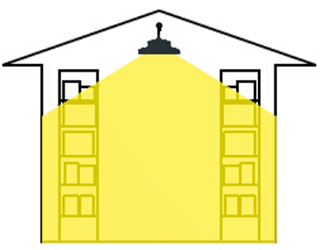

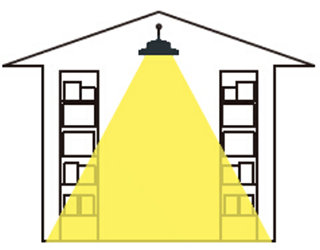

Special Design For Warehouse

Specification

Model Number	Power Consumption(W)	Luminous Flux(lm)		Module Qty	Weight(KG)
Model Number	Power Consumption(W)	With reflector (R)	With optical lens (X)	Module Qty	Weight(KG)
NOL-FL080(R/X)	80	10,400	9,600	1	4
NOL-FL100(R/X)	100	13,000	12,000	1	4
NOL-FL150(R/X)	150	19,500	18,000	2	7.5
NOL-FL200(R/X)	200	26,000	24,000	2	7.5
NOL-FL240(R/X)	240	31,200	28,800	3	11
NOL-FL300(R/X)	300	39,000	36,000	3	11
NOL-FL320(R/X)	320	41,600	38,400	4	15
NOL-FL400(R/X)	400	52,000	48,000	4	15

Above data is typical

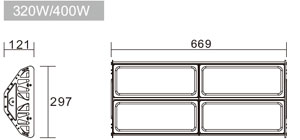

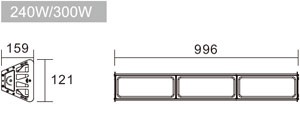

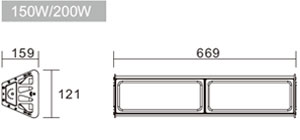

Dimension

Installation Way

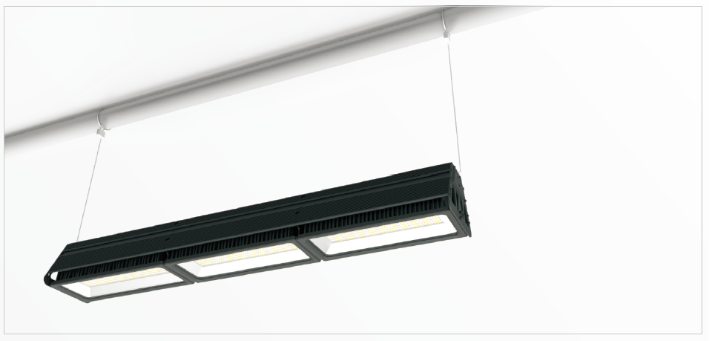

Suspension

Linear Bay Light

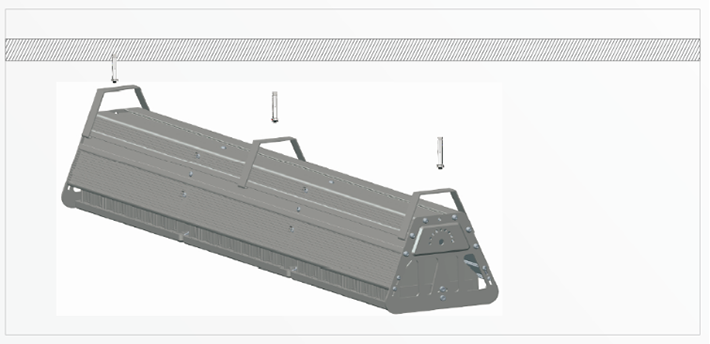

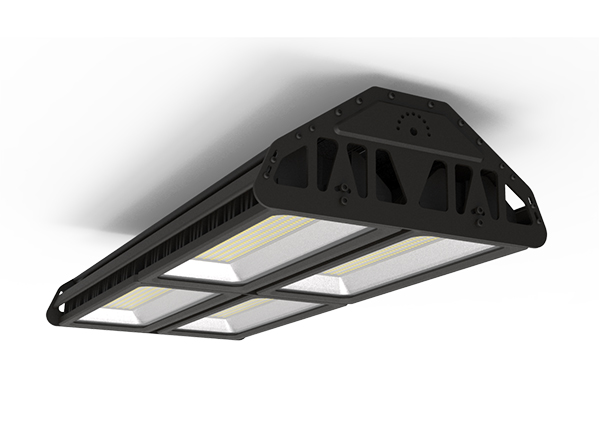

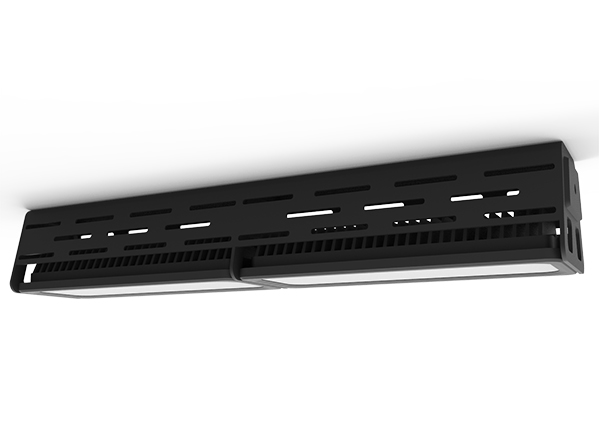

Surface Mount

Linear Bay Light

Packing

System Watt(W)	Carton Size(mm)	G.W.(Kg)
150W	735500405/4Pcs	31
200W	735500405/4Pcs	31
240W	1055500210/2Pcs	23.5
300W	1055500210/2Pcs	23.5
320W	735395400/2Pcs	32
400W	735395400/2Pcs	32
