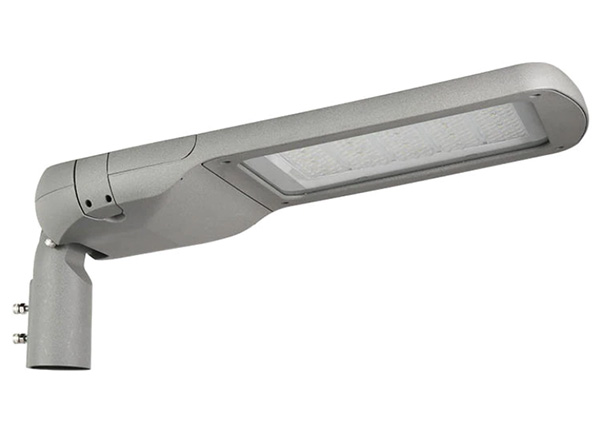

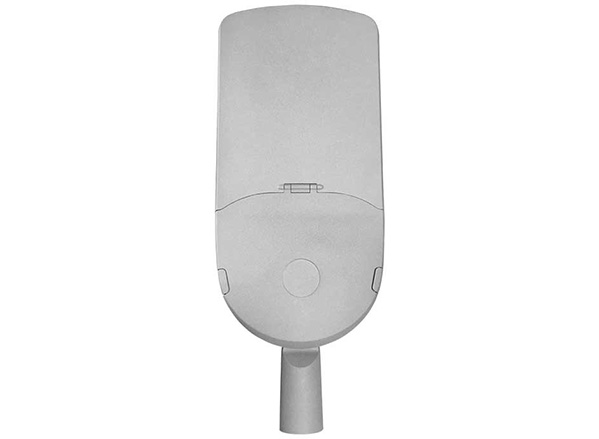

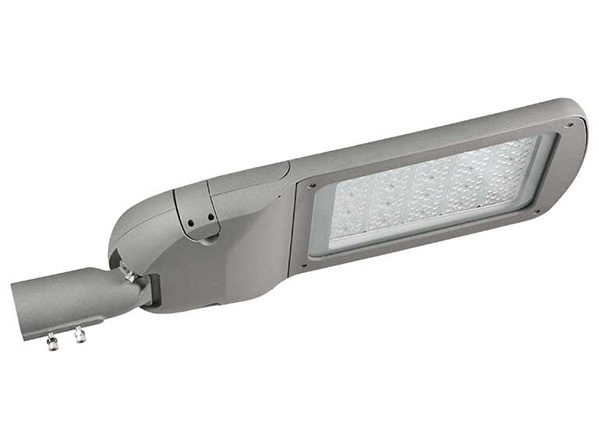

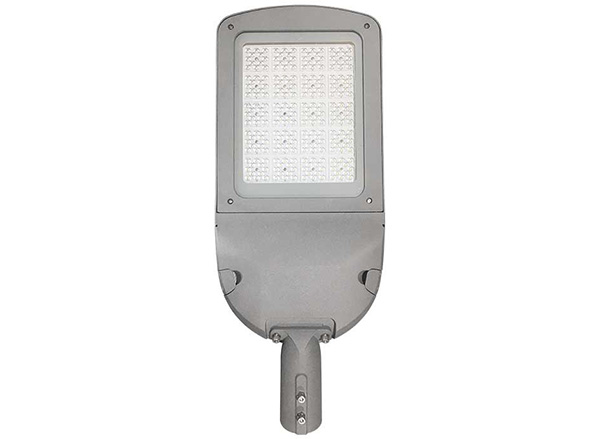

K2 SERIES LED STREET LIGHT

Designing the most efficient and cost-effective LED street light was the driving force behind the development of the K2 family.

The K2 series sets a new benchmark in led lighting with performing and flexible solutions that lead to the shortest payback time. With its long lifespan and easy maintenance, the K2 series enables you to max your return on investment.

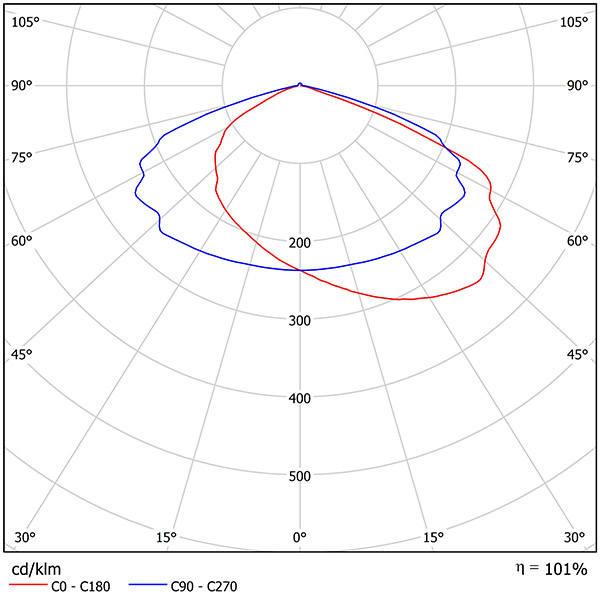

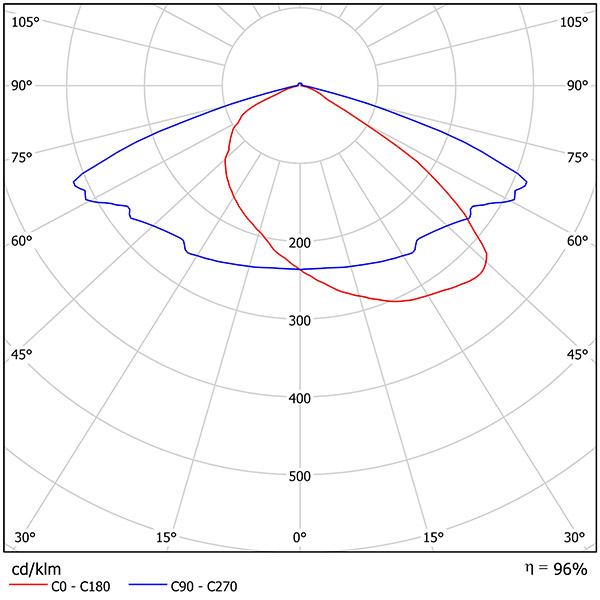

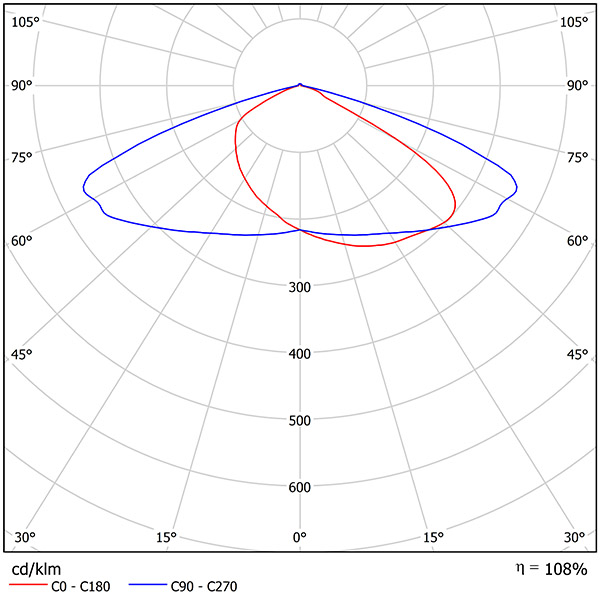

Available in 4 sizes and with numerous lighting distributions, the K2 series can meet your road and urban lighting needs.

Features

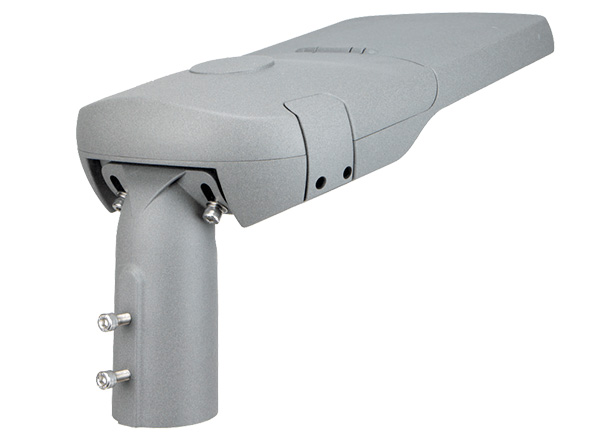

Design with adjustable fitter , supports for horizontal installation and vertical installation , adjustable tilt angle from -15° to 15°.

The tempered glass cover is not only dustproof and easy to clean , but also a bonus point for some specific street light tenders.

Tool less opening, easy for installation and maintenance.

Anti-UV optical lens with high light transmittance.

Excellent efficacy enables significant energy cost saving.

Compact and light weight, saving logistic cost.

Electrical disconnecting switch for optional.

10kV / 20kV surge protection device for optional.

5/7 PIN NEMA socket and photocell for optional.

General specification

Input voltage range	100-305VAC
Input Frequency	50/60Hz
Power Factor	≥ 0.95@230VAC
Total Harmonic Distortion	< 10%
Surge Protection	10kV (20kV for optional)
Color Temperature	4000K (Other color temperatures are optional)
Ingress Protection Rating	IP66
Lifespan	50,000hours
Operating Temperature Range	-40℃ to 50℃
Color rendering index	> 70

Specification

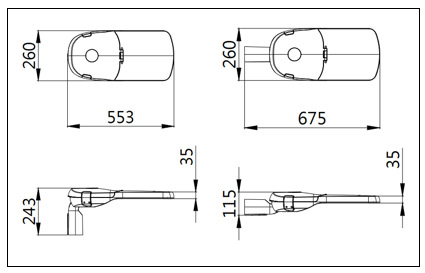

Model NO.	Wattage (W)	Luminous flux (lm)	Dimension (mm)	N.W (KG)

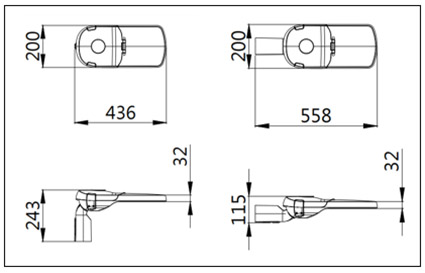

TSL-0703-K2N	30	4,500	43620032	3.8
TSL-1005-K2N	50	7,500	43620032	3.8

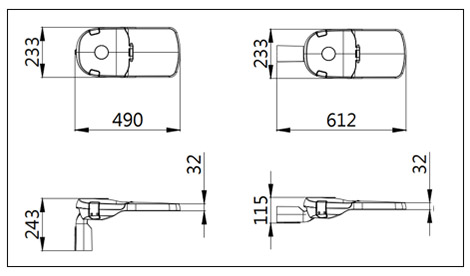

TSL-1508-K2S	80	12,000	49023332	5.2
TSL-2510-K2S	100	15,000	49023332	5.2
TSL-2512-K2M	120	18,000	55326035	6.2
TSL-4015-K2M	150	22,500	55326035	6.2

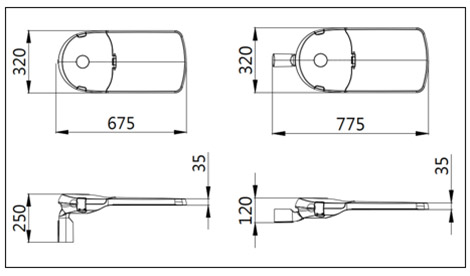

TSL-4018-K2L	180	27,000	67532035	8.5
TSL-4020-K2L	200	30,000	67532035	8.5

*Above data is typical data.

Packing

Model	Package size (mm)	G.W (KG)
TSL-0703-K2N/ TSL-1005-K2N	550220135	4.5
TSL-1508-K2S / TSL-2510-K2S	660280135	6
TSL-2512-K2M / TSL-4015-K2M	710290135	7
TSL-4018-K2L / TSL-4020-K2L	830360135	9.6

Smart Street Lighting Ready

Smart Street Light System

Edge X manages street lights as an asset. Lighting can be tuned based on the traffic and pedestrian flow to maximize energy saving without compromising safety.
Visualization Interface

Edge X has an intuitive user interface. It allows the user to view their asset on the map, manage and perform tasks remotely.
Intelligent Signage

Edge X can manage Digital Signage which can provide information for pedestrian and provide targeted marketing based on pedestrian focused contextual analytics.
Failure Report System

Edge X allow public to report failure of devices and enables authorities to record, track and analyze events to improve the quality of service.
Consumption Monitoring

Edge X can monitor energy consumption of devices. This information can help user to manage and achieve targeted energy saving.
Asset Management System

Edge X can manage a portfolio of devices in an increasingly complex city setting. It is an easy to use single entry portal to manage all devices like poles, sensors, cameras and so on.
