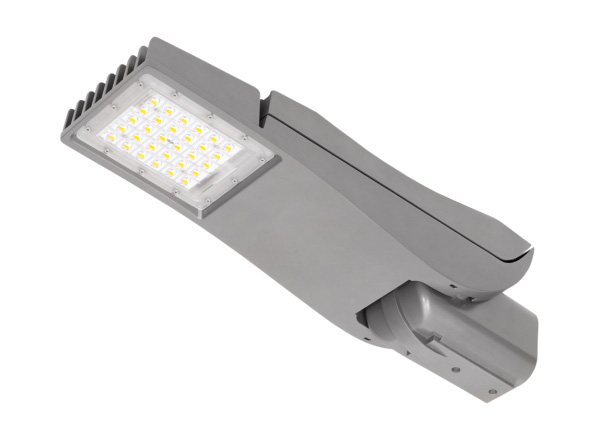

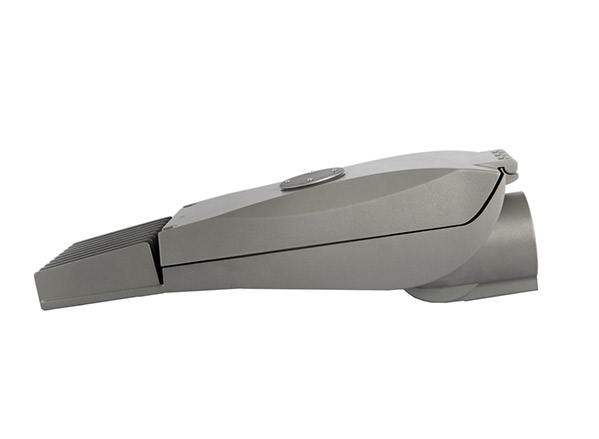

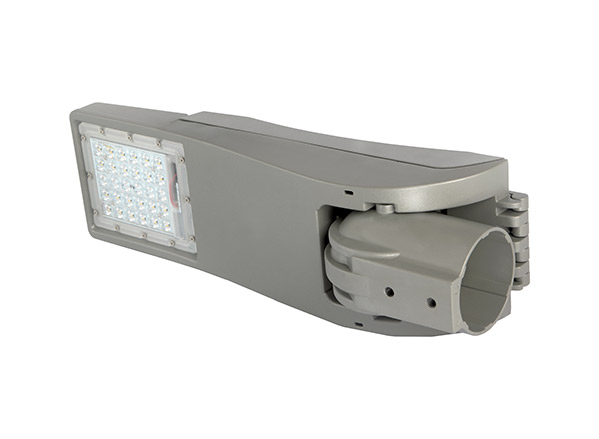

The Mini series is a compact and robust LED street light. High quality die-casting aluminum materials and super corrosion resistance paintings make it suitable to Install in seaside countries. Design with more than 10 types optical lens provide end users the best ,flexible and stability LED road light.
Wattage range: 20W/30W/40W/50W/60W/70W/80W/90W/100W LED street light.
130lm/w, IK10, IP66
Passed 1000H salt spray test with high quality aluminum and paintings.
Using top class original packing LEDs.
Photocell, 3/5/7 pins NEMA Socket and LoRa/Zhaga socket for smart led street light optional.
10kV, 40kV Surge protection device optional.
100,000 hours long life span LED street light.
Universal mounting hardware design suitable for post top and side entry.
Tilting mechanism enable fast adjustment on tilt angles from -10° to 10° in 5° step
| Input Voltage Range | 100-277Vac |
| Input Frequency | 50/60Hz |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | 10KV / 40KV |
| Color Temperature | 5000K, Other color temperatures are optional |
| Ingress Protection Rating | IP66 |
| Operating Temperature Range | -40℃ to 50℃ |
| Model Number | Power Consumption(W) | Luminous Flux(lm) |
| TSL-0402-05 | 20 | 2,600 |
| TSL-0503-05 | 30 | 3,900 |
| TSL-0704-05 | 40 | 5,200 |
| TSL-1005-05 | 50 | 6,500 |
| TSL-1006-05 | 60 | 7,800 |
| TSL-1507-05 | 70 | 9,100 |
| TSL-1508-05 | 80 | 10,400 |
| TSL-2509-05 | 90 | 11,700 |
| TSL-2510-05 | 100 | 13,000 |
Above data is typical

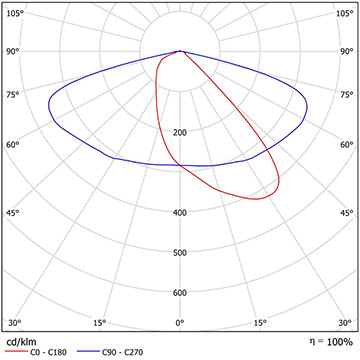

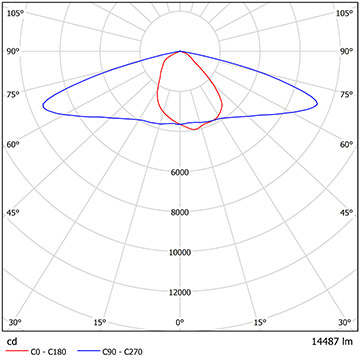

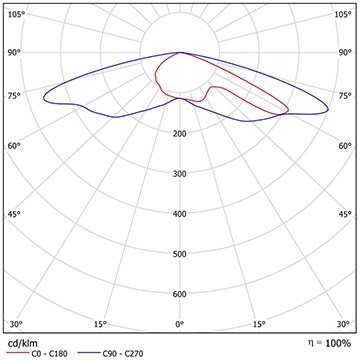

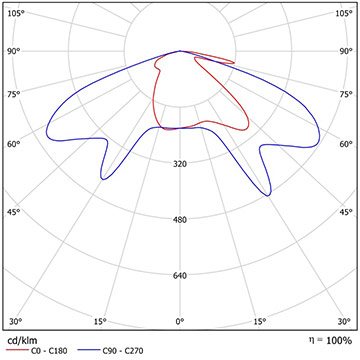

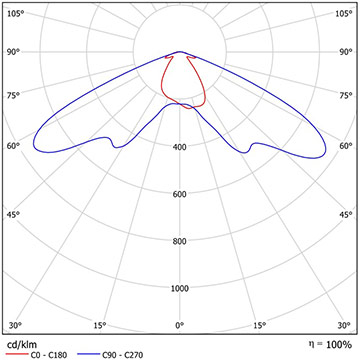

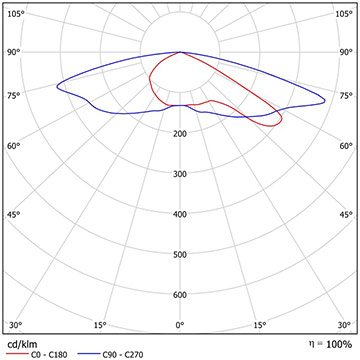

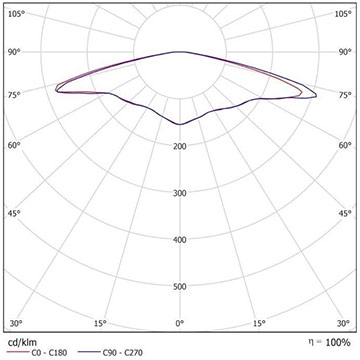

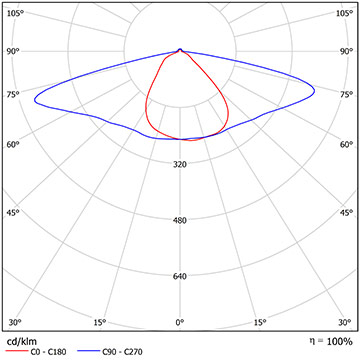

High quality & professional design optical lens provide 5%-7% higher efficacy than similar types of LED road light.
Lamp: Composed of high-performance original Cee or Nichia leds, color temperature of 5,000K, CRI 70, Full IP 66 ingress protection against water & dust. A Metal Core Printed Circuit Board (MCPCB) is used to efficiently remove heat from the LED’s and transfer it to the housing to lower the LED’s operating temperature as much as possible.

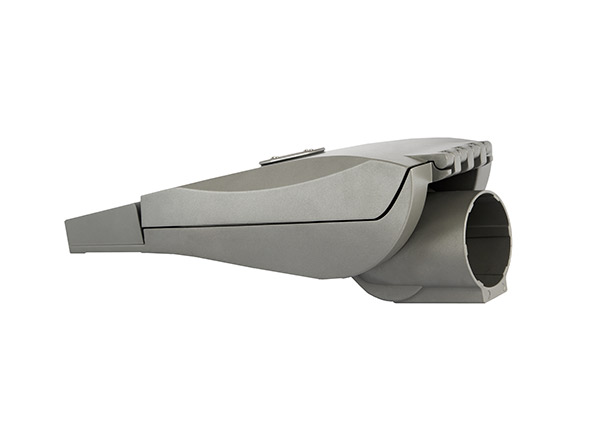

Housing: approved a solid die-cast IK08 rated housing, ensuring high strength and safety on the pole, provides the excellent heat dissipation, extending the life of the components inside.

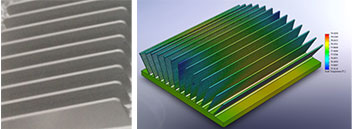

Heat Sink: Aluminum extrusive heat sink enhance thermal conductivity.
Adjustable tilt angle: latching system is adopted, and the tilting mechanism enable fast adjustment on tilt angles from -10 to +10 degrees 5 degree step
Photocell is for optional.

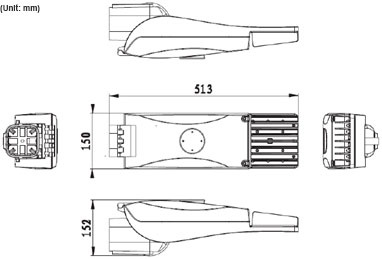

| product size | 513*150*152mm |
| Net weight | 4.8kg/pcs |
| Packing | 2pcs/carton |
| Carton size | 585*410*230mm |
| Gross weight | 12.2kg/carton |

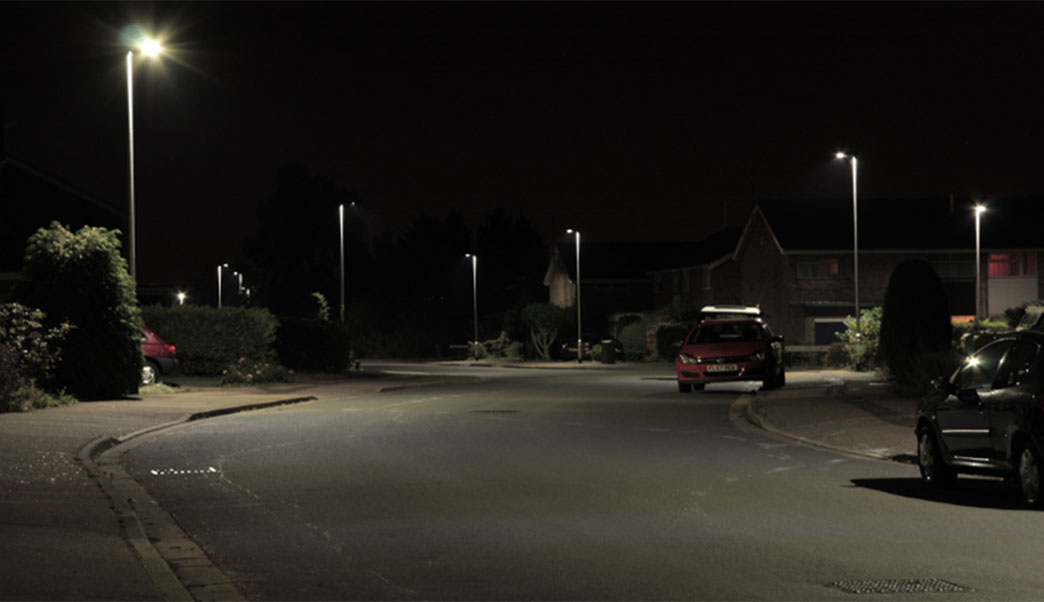

Tynrich mini led street lights are widely use for roadway applications including residential streets, parking lots and other long narrow areas.
We provide 5 years warranty from date of original purchase from Tynrich for LED products.
Edge X manages street lights as an asset. Lighting can be tuned based on the traffic and pedestrian flow to maximize energy saving without compromising safety.
Edge X has an intuitive user interface. It allows the user to view their asset on the map, manage and perform tasks remotely.
Edge X can manage Digital Signage which can provide information for pedestrian and provide targeted marketing based on pedestrian focused contextual analytics.
Edge X allow public to report failure of devices and enables authorities to record, track and analyze events to improve the quality of service.
Edge X can monitor energy consumption of devices. This information can help user to manage and achieve targeted energy saving.
Edge X can manage a portfolio of devices in an increasingly complex city setting. It is an easy to use single entry portal to manage all devices like poles, sensors, cameras and so on.
