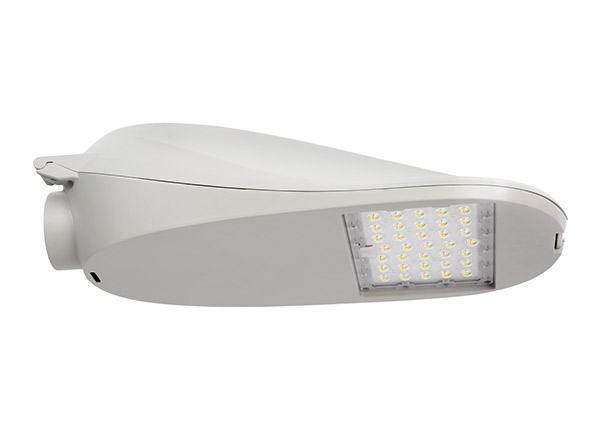

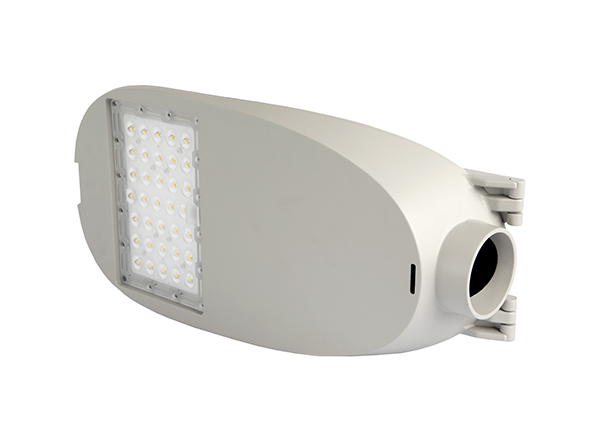

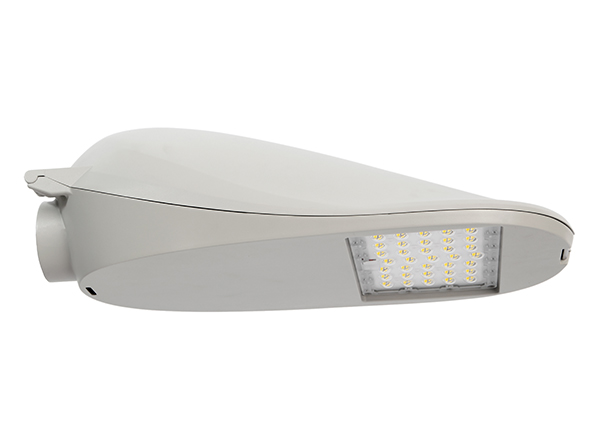

The G9 Plus series is an extension of MINI II. The extension is to keep similar outline but increase the space of power compartment which could accommodate additional communication devices. In addition, G9 Plus platform can be easily converted to be customized as always.
Low copper aluminum alloy with high corrosion resistance power coating.
Tool-less operating latch design , easy for opening and closing .
Adjustable tilt angle from -5 to 10 degrees in 5 degrees step.
Hidden heat sink avoids contaminants accumulated .
Excess space of power compartment allows installation of additional communication devices .
Excellent efficacy enables significant energy cost saving .
| Operating Voltage Range | 90~305Vac |
| Input Frequency | 50/60Hz |
| Power Factor | ≥ 0.95 @ 220Vac |
| Total Harmonic Distortion | ≤10 @ 220Vac |
| Surge Protection | 10KV (40KV for optional) |
| Color Temperature | 4000K (Other color temperatures are optional) |
| Net Weight | 5.8KG |
| Ingress Protection Rating | IP66 |
| Operating Temperature Range | -40℃ to 50℃ |
| Model NO. | Power consumption (W) | Luminous Flux (lm) |
| TSL-1006-09P | 60 | 9,000 |
| TSL-1507-09P | 70 | 10,500 |
| TSL-1508-09P | 80 | 12,000 |
| TSL-2510-09P | 100 | 14,500 |
| TSL-2512-09P | 120 | 16,800 |
| TSL-4013-09P | 130 | 17,500 |
*Above data is typical data.
Edge X manages street lights as an asset. Lighting can be tuned based on the traffic and pedestrian flow to maximize energy saving without compromising safety.
Edge X has an intuitive user interface. It allows the user to view their asset on the map, manage and perform tasks remotely.
Edge X can manage Digital Signage which can provide information for pedestrian and provide targeted marketing based on pedestrian focused contextual analytics.
Edge X allow public to report failure of devices and enables authorities to record, track and analyze events to improve the quality of service.
Edge X can monitor energy consumption of devices. This information can help user to manage and achieve targeted energy saving.
Edge X can manage a portfolio of devices in an increasingly complex city setting. It is an easy to use single entry portal to manage all devices like poles, sensors, cameras and so on.
