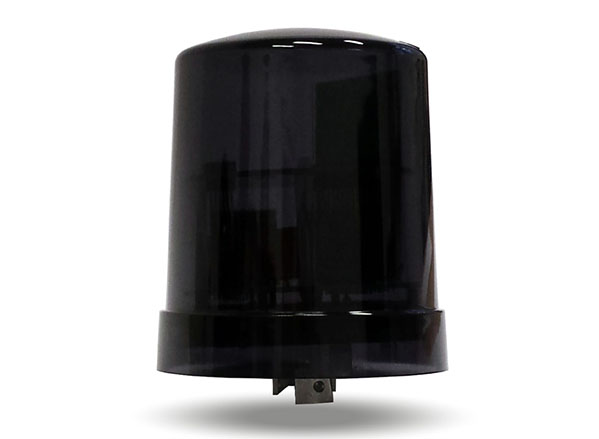

NB-IoT/LTE-M Smart Light Controller / NEMA Street Light Controller

Features

Designed and optimized by Low Power Wide Area Network (LPWAN) with NBIoT and LTE-M network technology.

Compatible with the ANSI C136-41 NEMA type LED luminaires.

Smart Control function (ON/OFF/Dimming).

Electrical parameters monitoring.

Fault detection.

Electrical parameters monitoring with measurement, precision1%.

Working according to the set dimming plan and illuminance when communication fail.

Intelligent operation based on predestinate schedule.

Wide operating temp range -30˚C to +70˚C.

Platform connection - supporting MQTT transfer protocol.

Supporting Firmware-Over-the-Air (FOTA).

Supporting Power on wattage calibration.

Supporting integrated GPS location and RTC schedule for BA-SCDA-B01U-1 model.

Specification

Model NO.		WSL-NBIOT-02

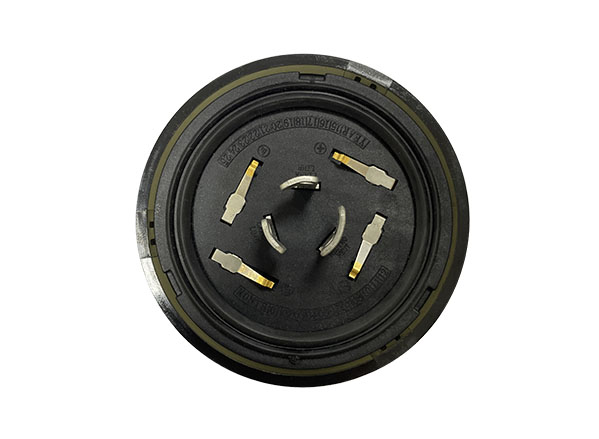

Pin Define		7pin connector, meet ANSI C136.41 Standard
Light Control		ON , OFF , Dimming(1-10Vdc)
Electrical parameters monitor		Vrms(V), Irms(I), Power Factor (PF) Frequency(Hz), Power(W) , RSSI(dBm)
Wireless
NB-IoT		Frequency Band: B1/B2/B3/B4/B5/B8/B12/B13/B17/B19/B20 B25/B26/B28/B66
Electrical Specification
AC Input Voltage		100-277VAC/50-60Hz
Power consumption		Max.2W
Max. Switching load		Max.1.2A@220VAC
Surge Protection		10kV(20kV optional )
Firmware
Firmware update		OTA(Over the air)
Physical Characteristic
Ingress Protection		IP66
Dimensions		Ф80*100mm
Weight		215g
Environmental
Storage Temperature		-40˚C to +80˚C
Operating Temperature		-30˚C to +70˚C
Operating Humidity		0~ 95%
