LED RETROFIT KIT

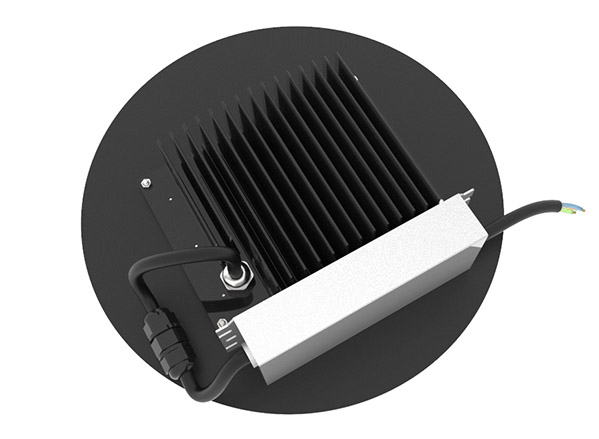

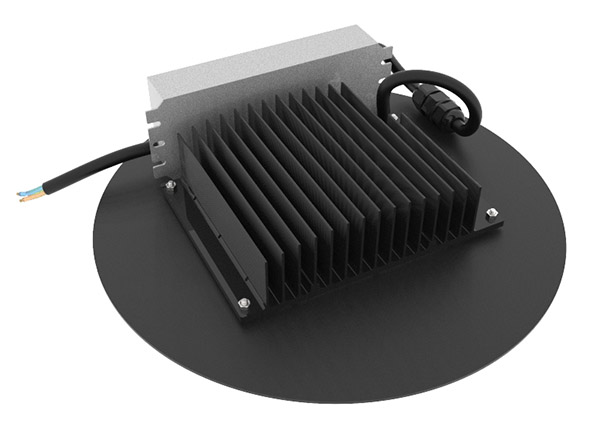

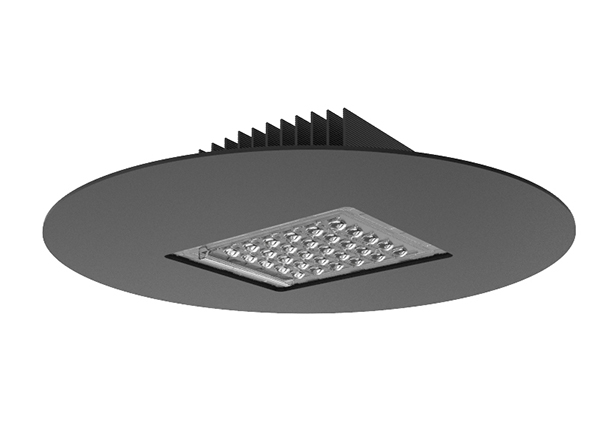

The LED Retrofit kit is for the conversion to LED of already installed fixtures. It is a very simple way to keep the original street light fixture , but change the internal light source .

  • Product - LED RETROFIT KIT
  • Product - LED RETROFIT KIT
  • Product - LED RETROFIT KIT
  • Product - LED RETROFIT KIT
  • Product - LED RETROFIT KIT

Features

The LED Retrofit kit can be installed on any fixtures , preserving the aesthetics of lighting fixtures of historical value and adapting them to the most modern LED technology.

The LED Retrofit kit is designed to simplify assembly operations and reduce installation time.

Energy saving of more than 50% .

Using the latest and high flux LEDs.

Professional designed optical lens to ensure high visual comfort and minimize the point effect typical of LED sources.

Corrosion resistance surface treatment , suitable for outdoor installation.


Standard

EN55015, EN61547, EN62031, EN62493, EN62471


Conformity

CE


Protection Classes

IP66 , IK08


Photobiological safety

EN62471


Warranty

5 years limited


General specification

Operation Voltage Range 100-305VAC
Input Frequency 50/60 Hz
Power Factor ≧0.95 @230Vac
Total Harmonic Distortion <10%
Surge Protection 10KV
Color Temperature 3000K/4000K/5000K
Color rendering index > 70
Lifespan LM80 > 50,000hours
Working Temperature Range -40℃ to 50℃
Driver functionality Fixed current /1-10V dimming / Automatic dimming

Available optical lens

LED RETROFIT KIT LED RETROFIT KIT

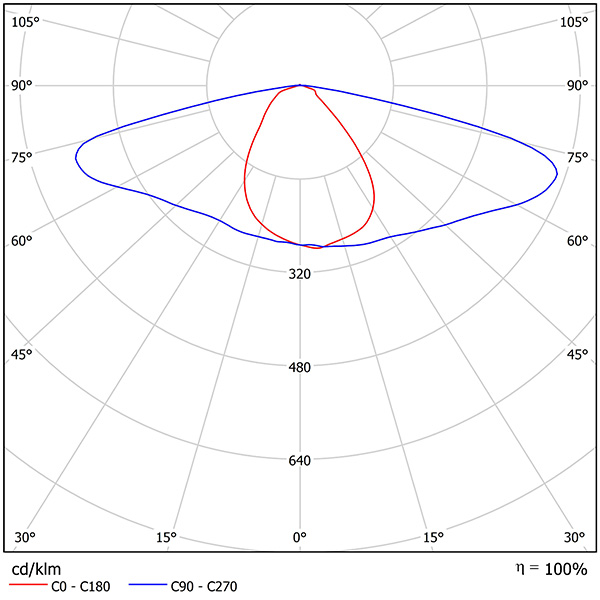

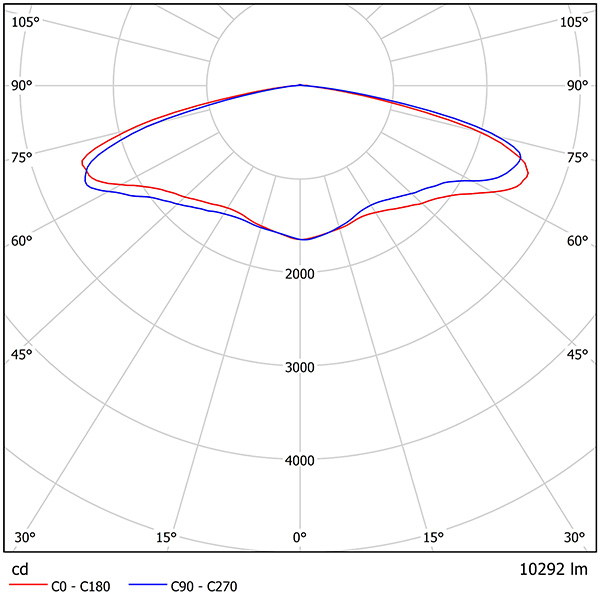

Asymmetrical (Type II Medium) Symmetrical (TYPE V)

Specification

Model Number System Power(W)  Luminous Flux (lm)  Efficiency(lm/w)
TMS-30-30 30 4350 145
TMS-30-40 40 5800 145
TMS-30-60 60 8400 140
TMS-30-80 80 10800 135
TMS-30-100 100 13000 130

*Above date is based on LED color temperature 4000K.

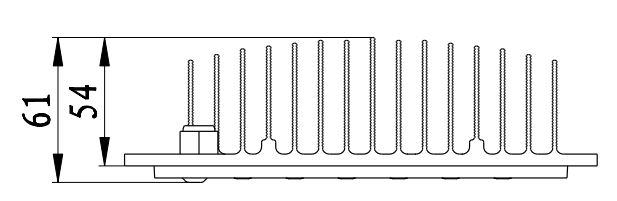

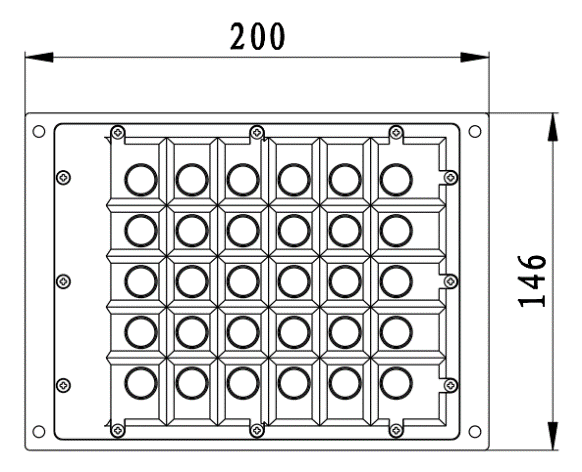

LED Module Dimension (Unit :mm)

*The modules can be installed on customized plates designed by our technicians.

LED RETROFIT KIT LED RETROFIT KIT

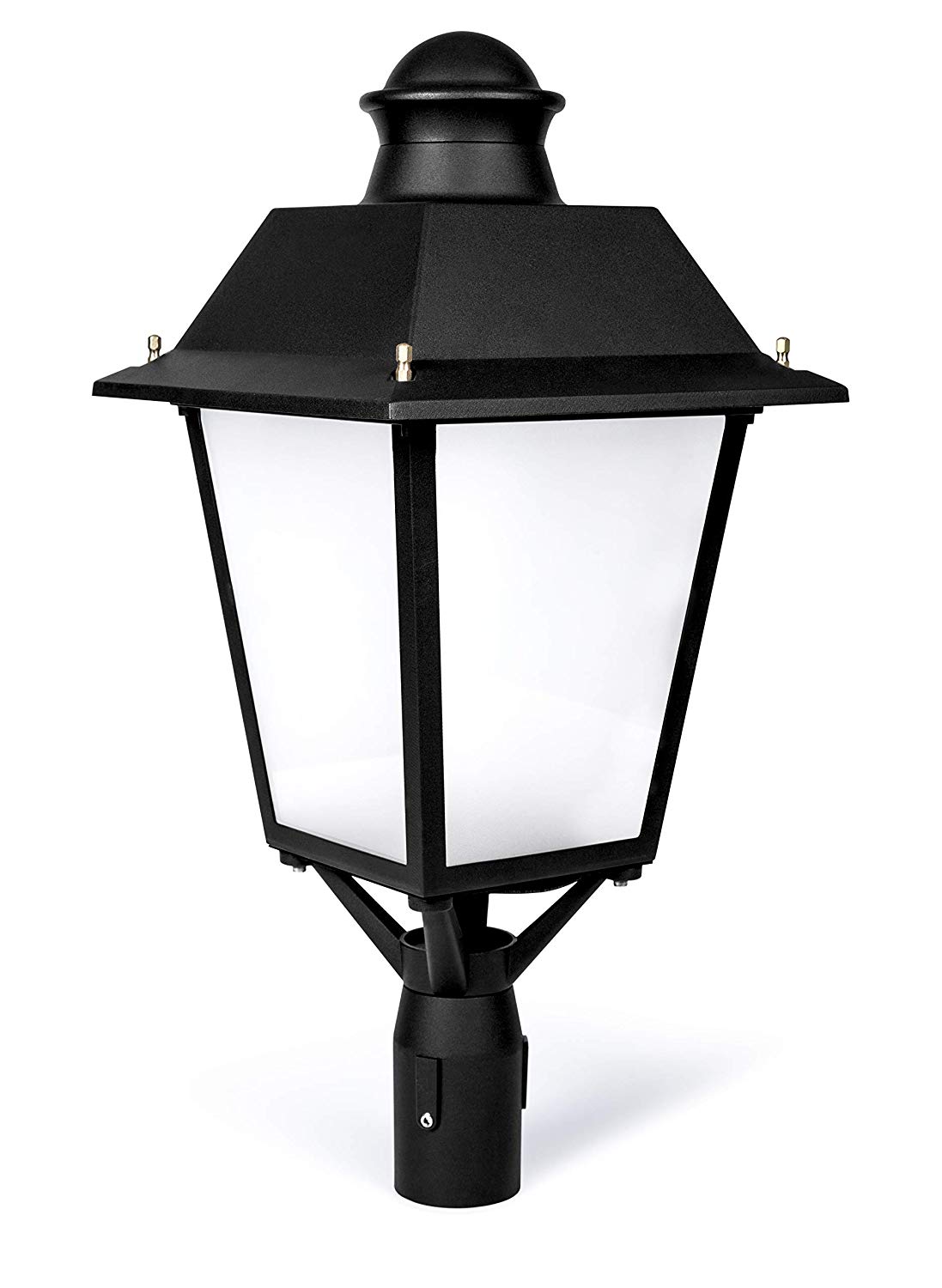

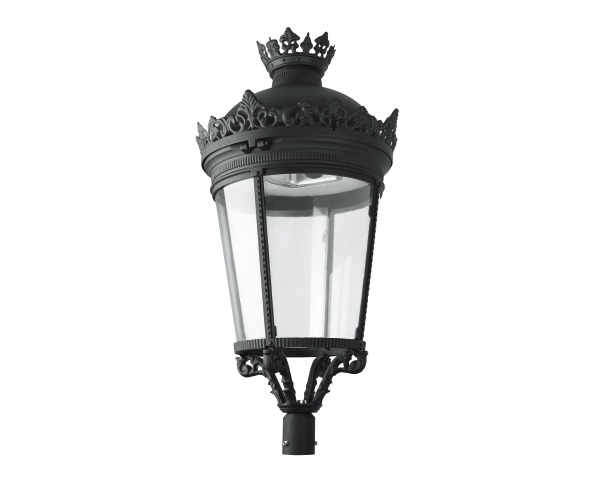

Application

LED RETROFIT KIT LED RETROFIT KIT
